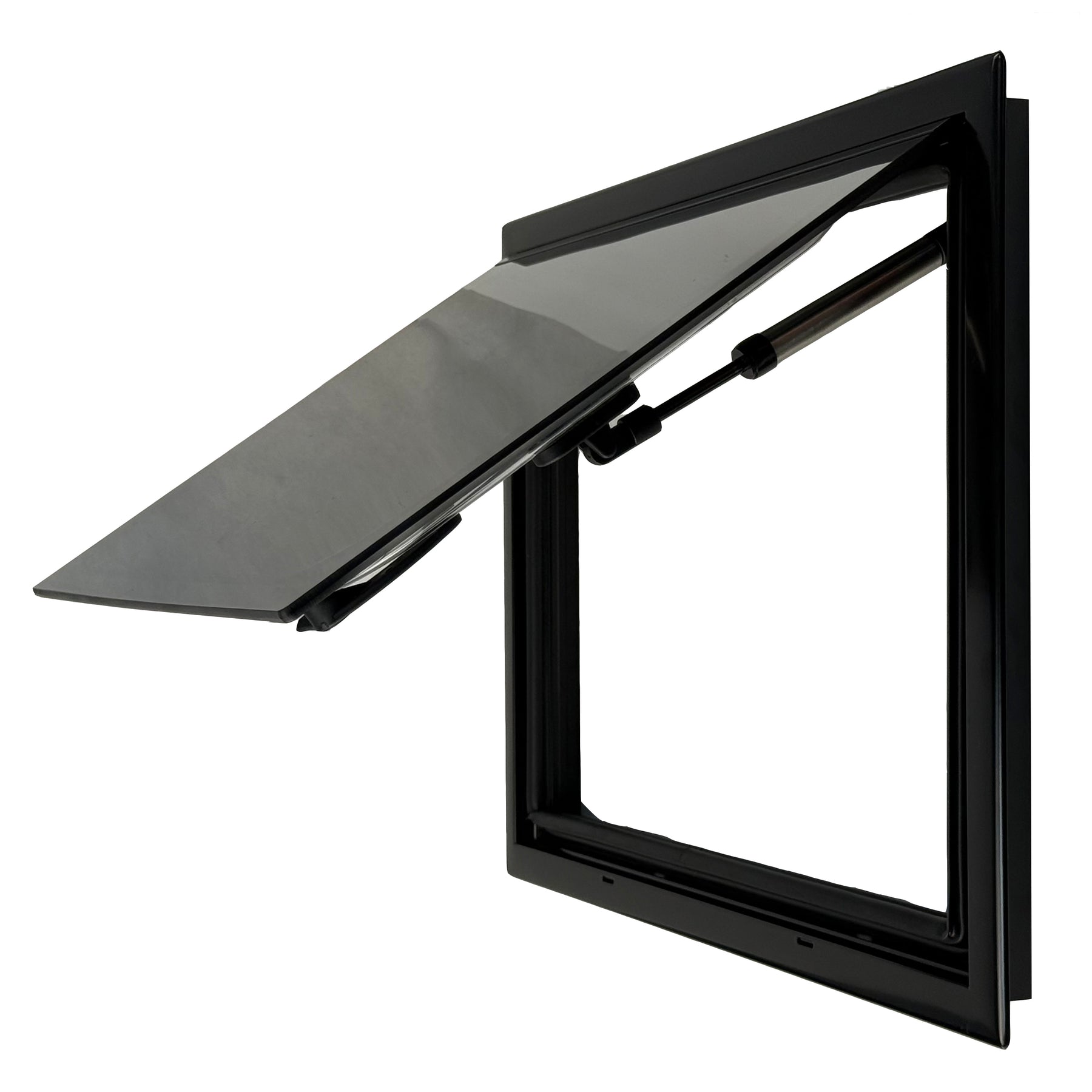

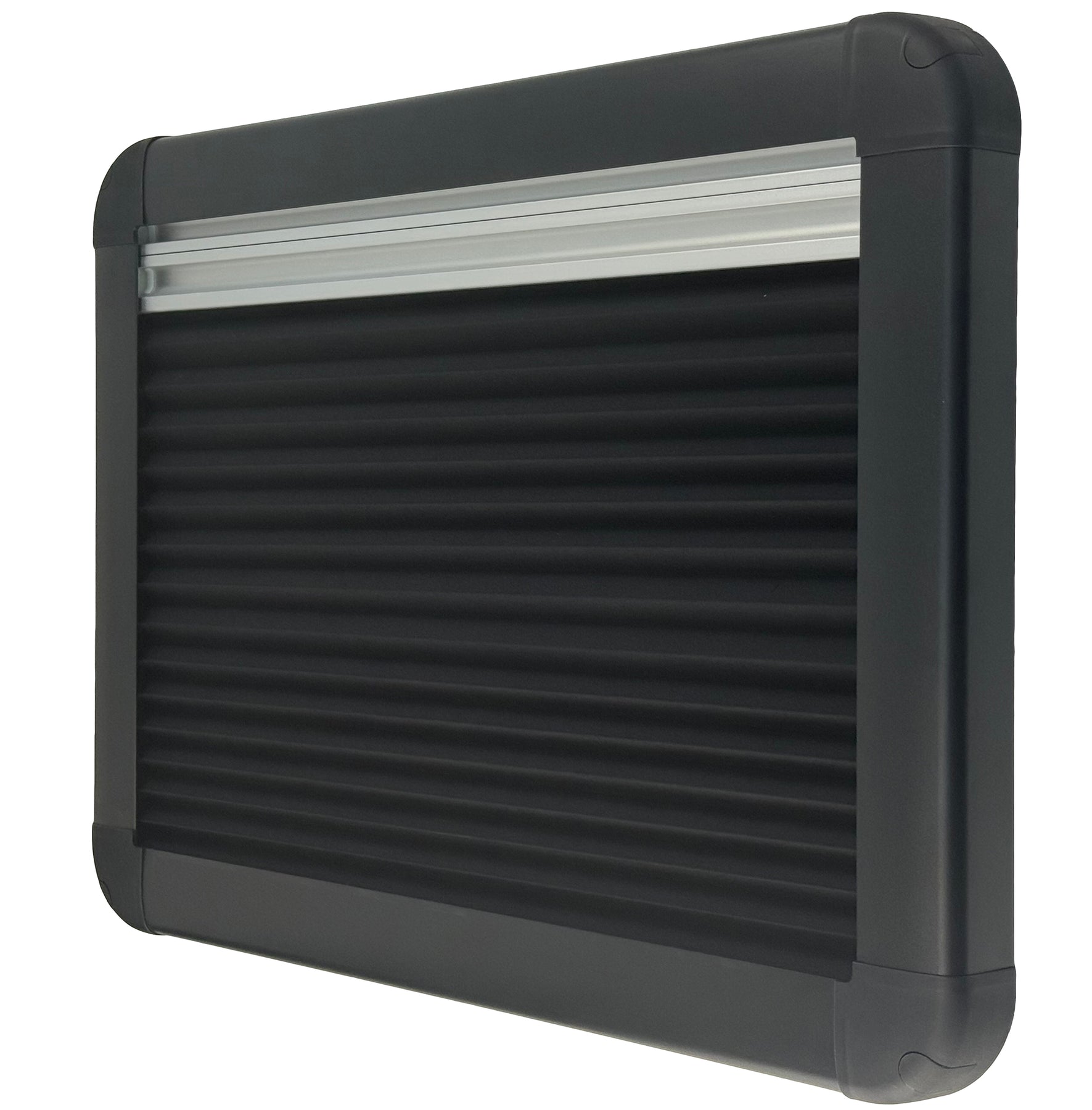

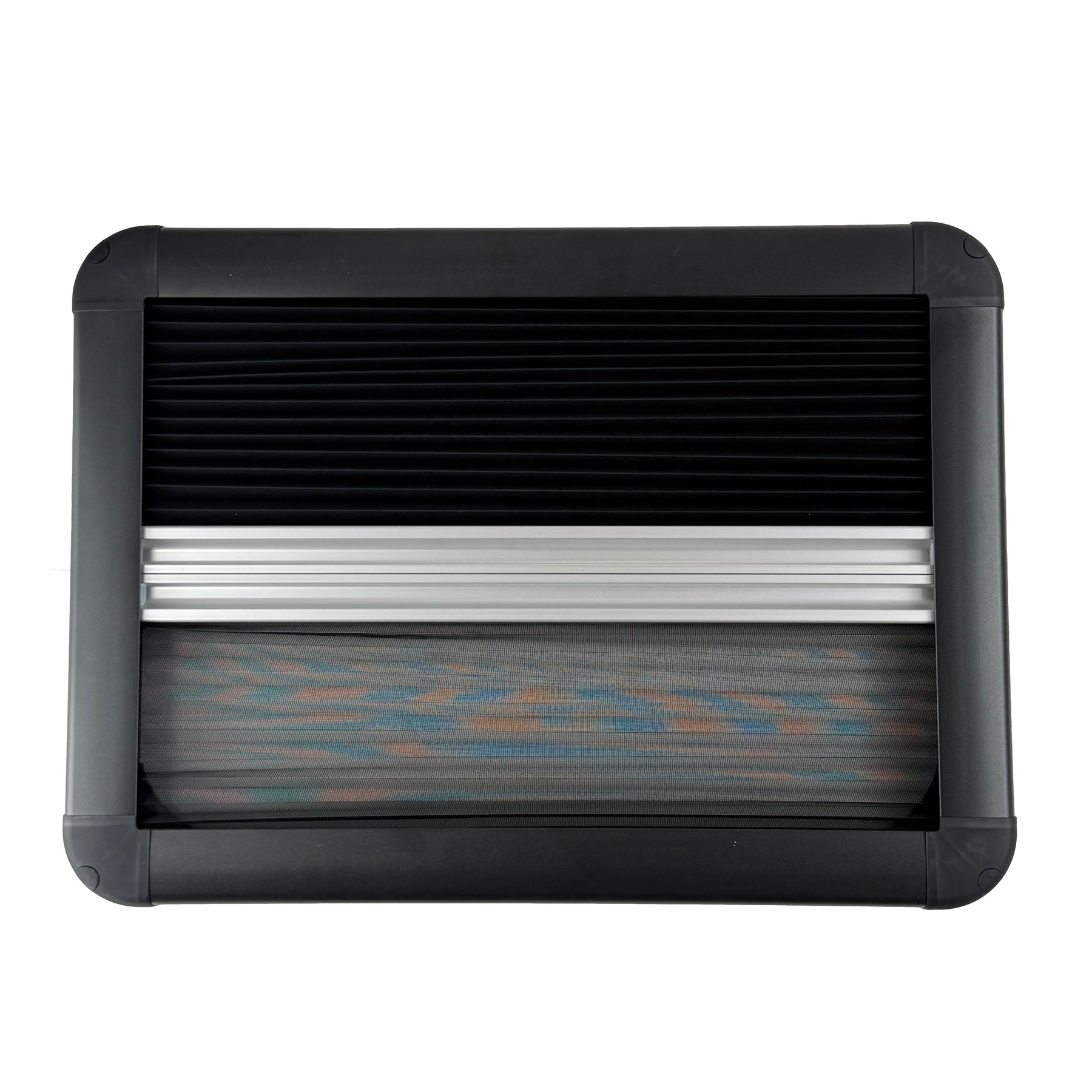

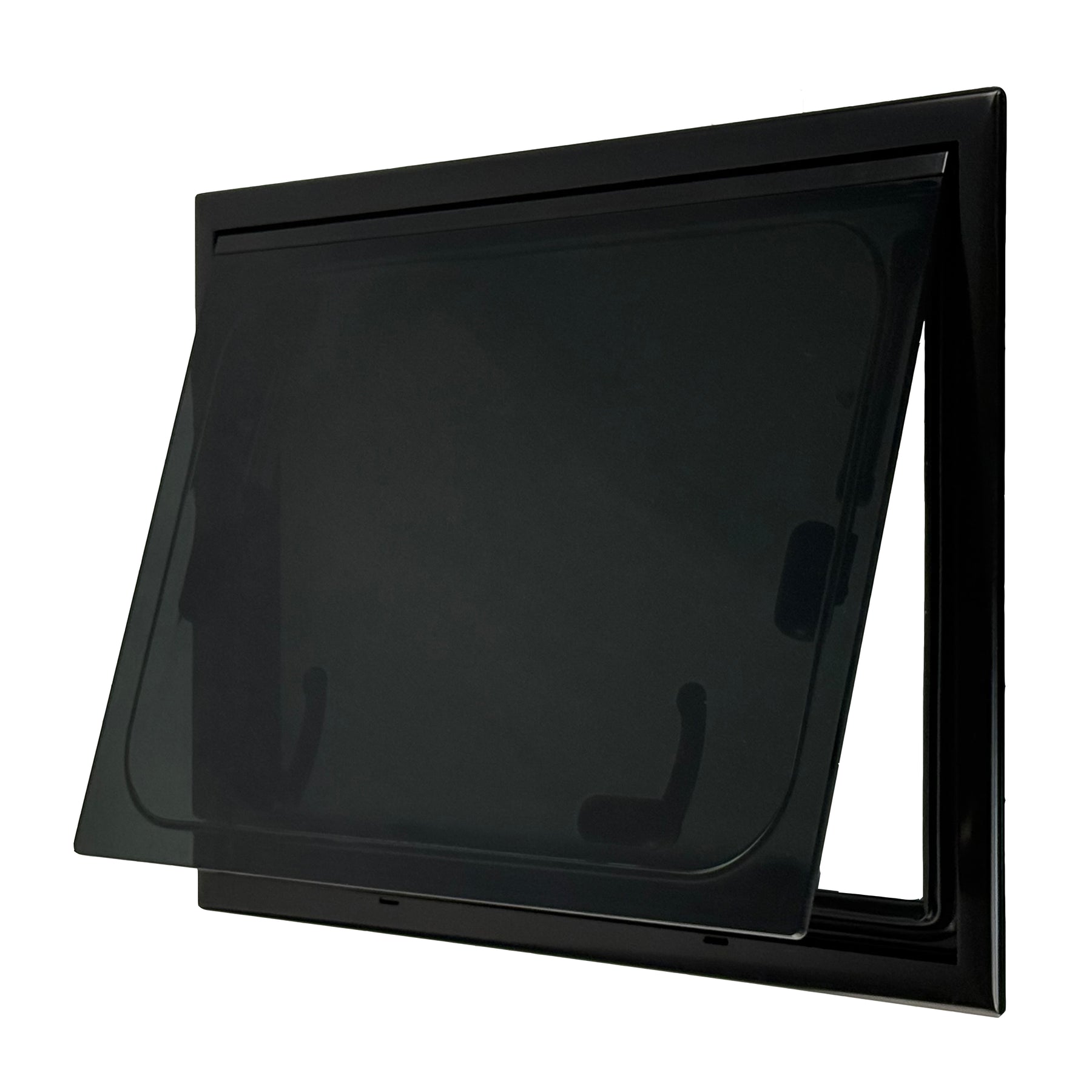

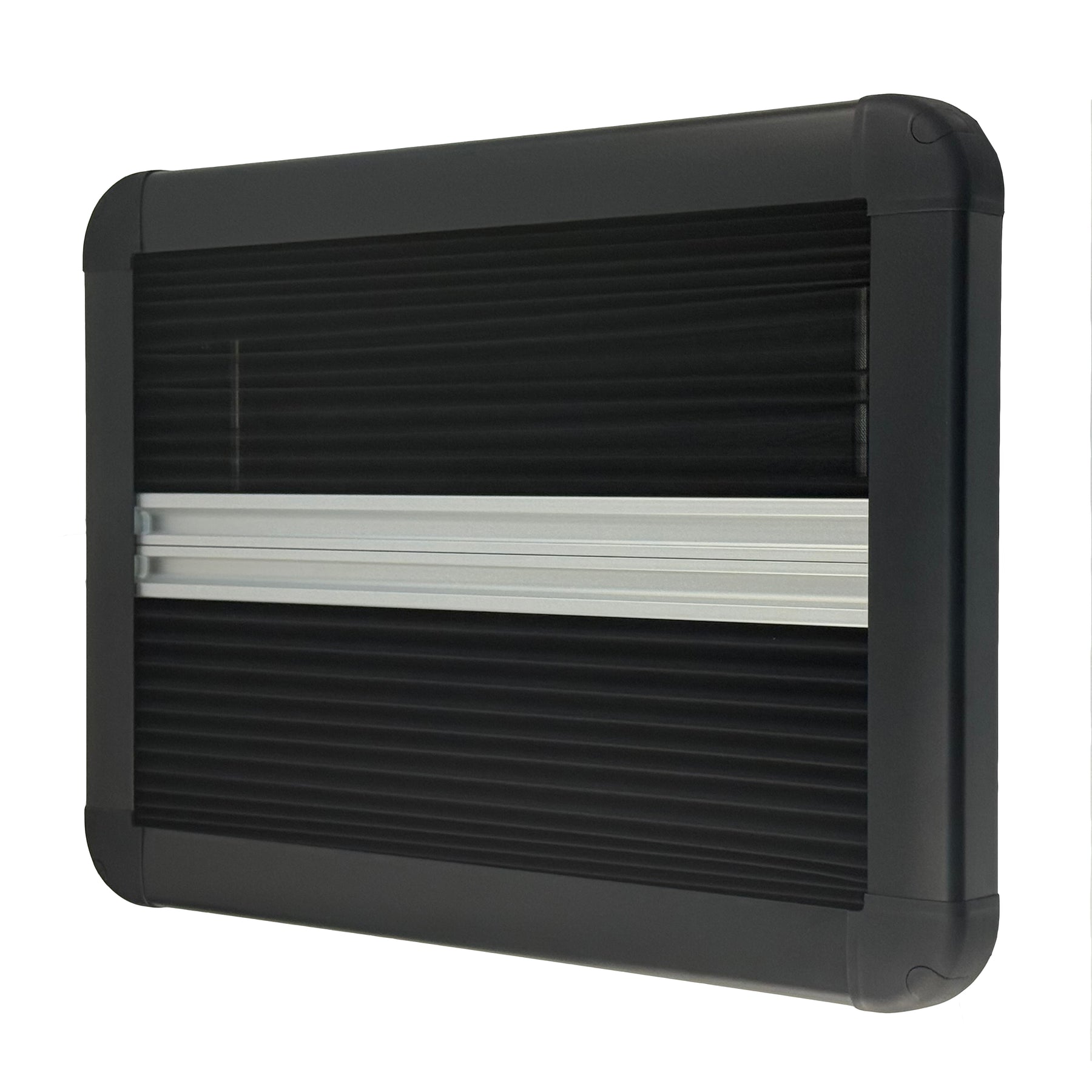

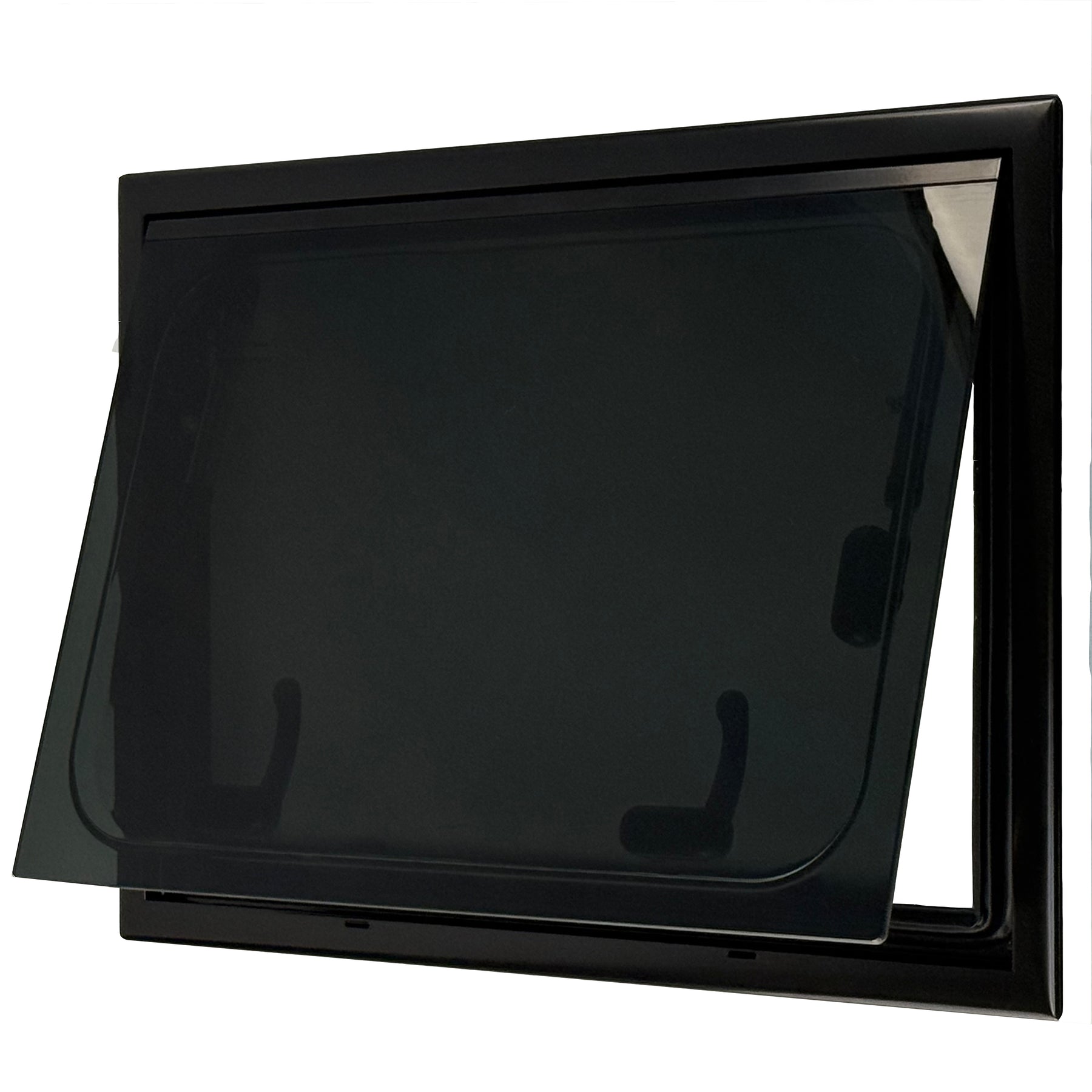

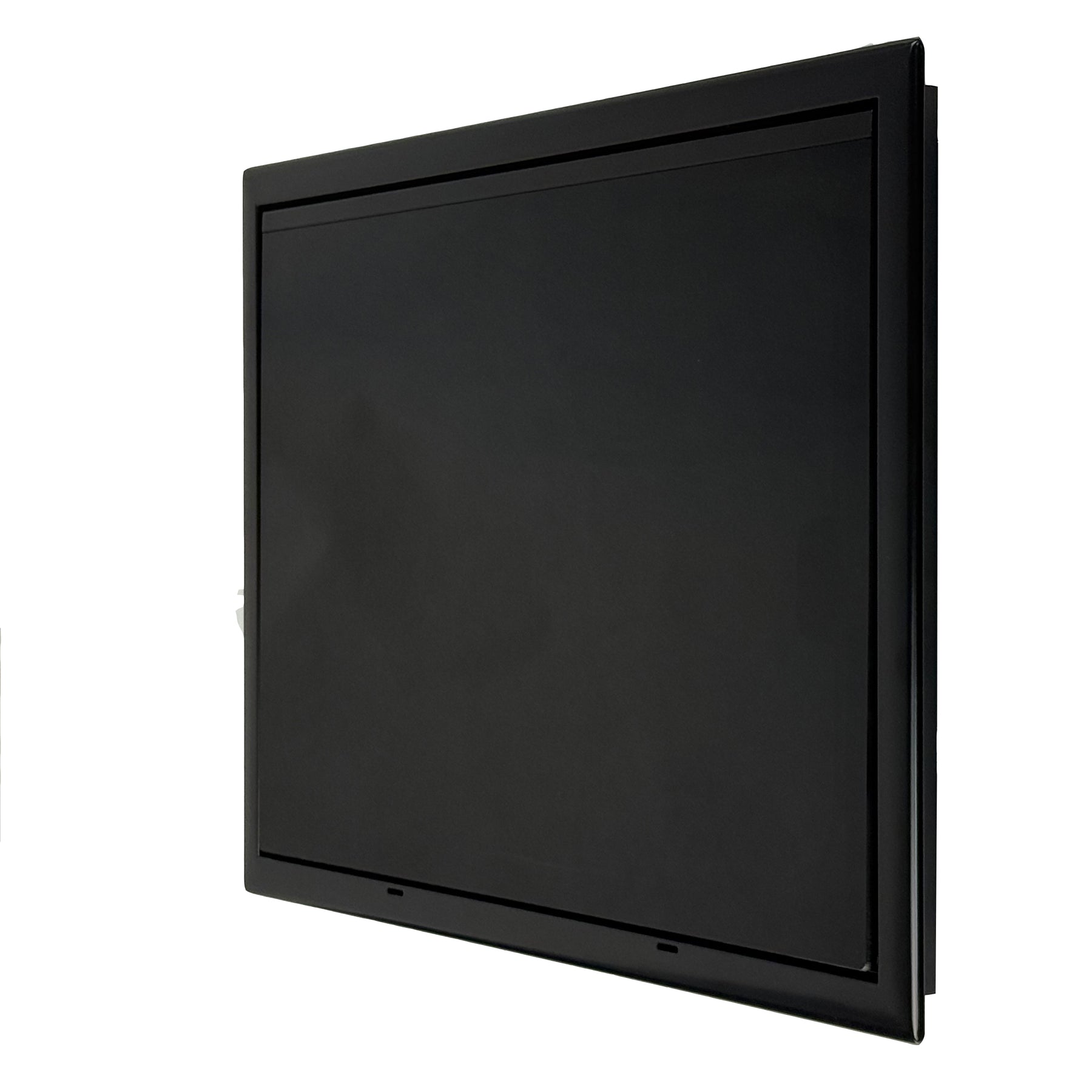

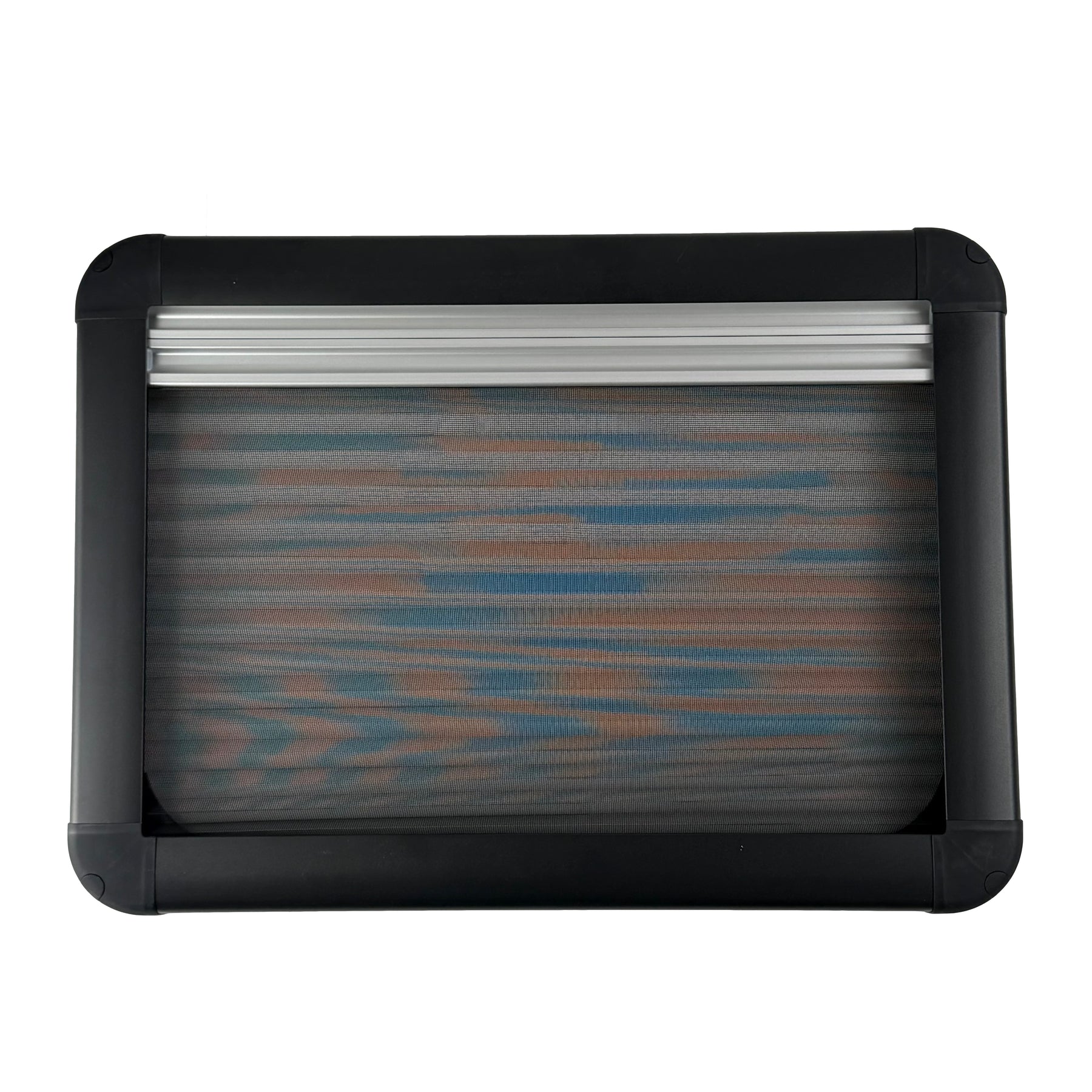

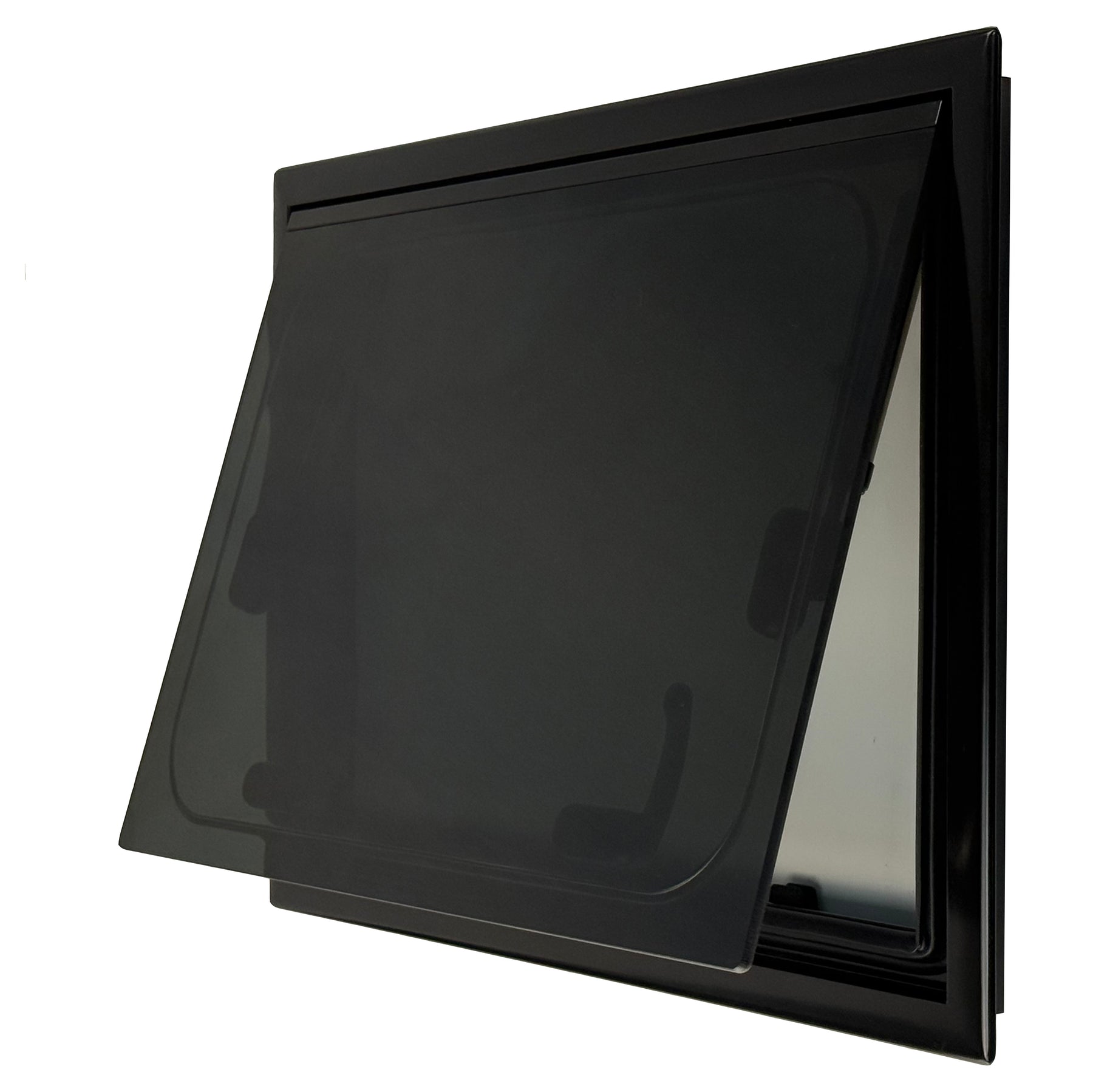

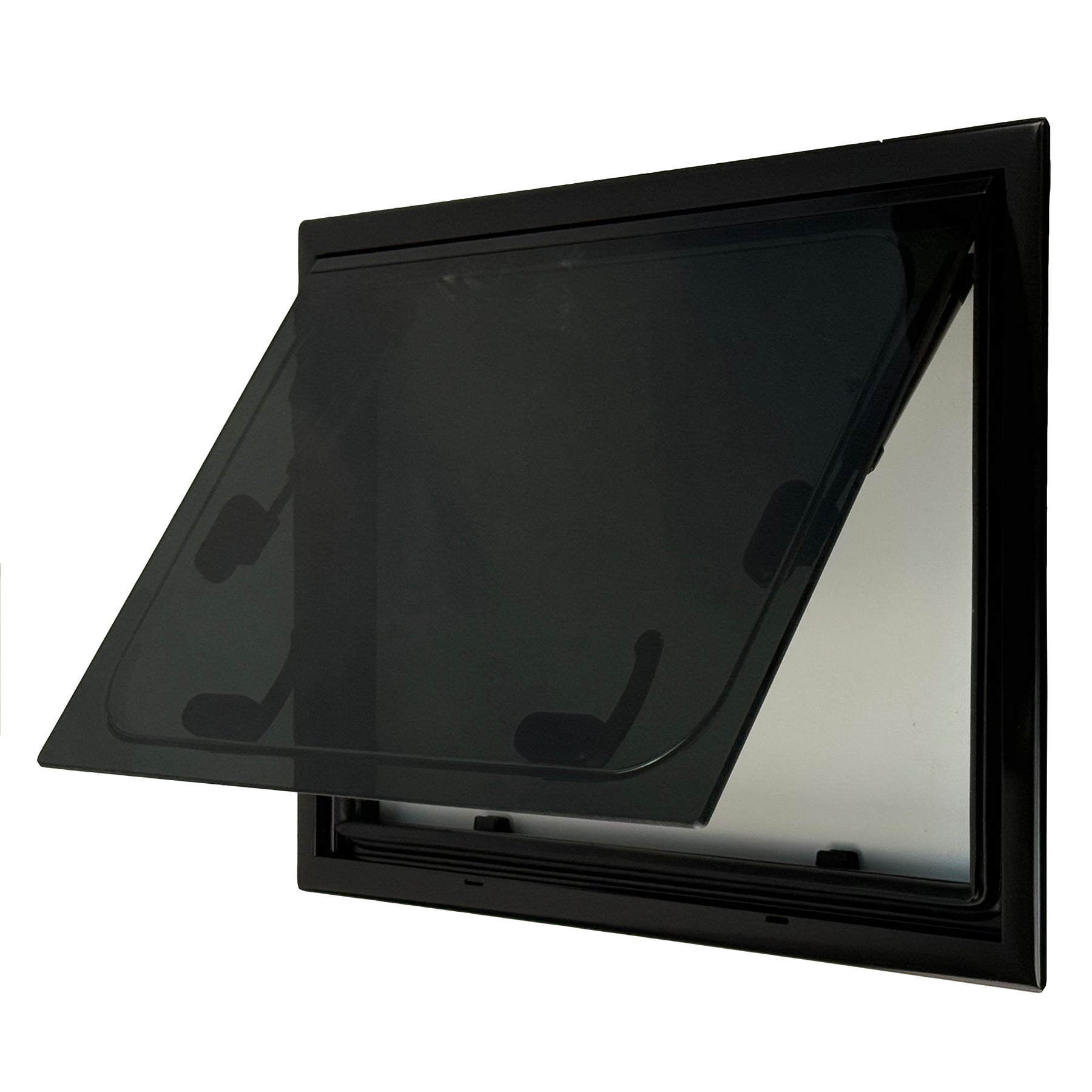

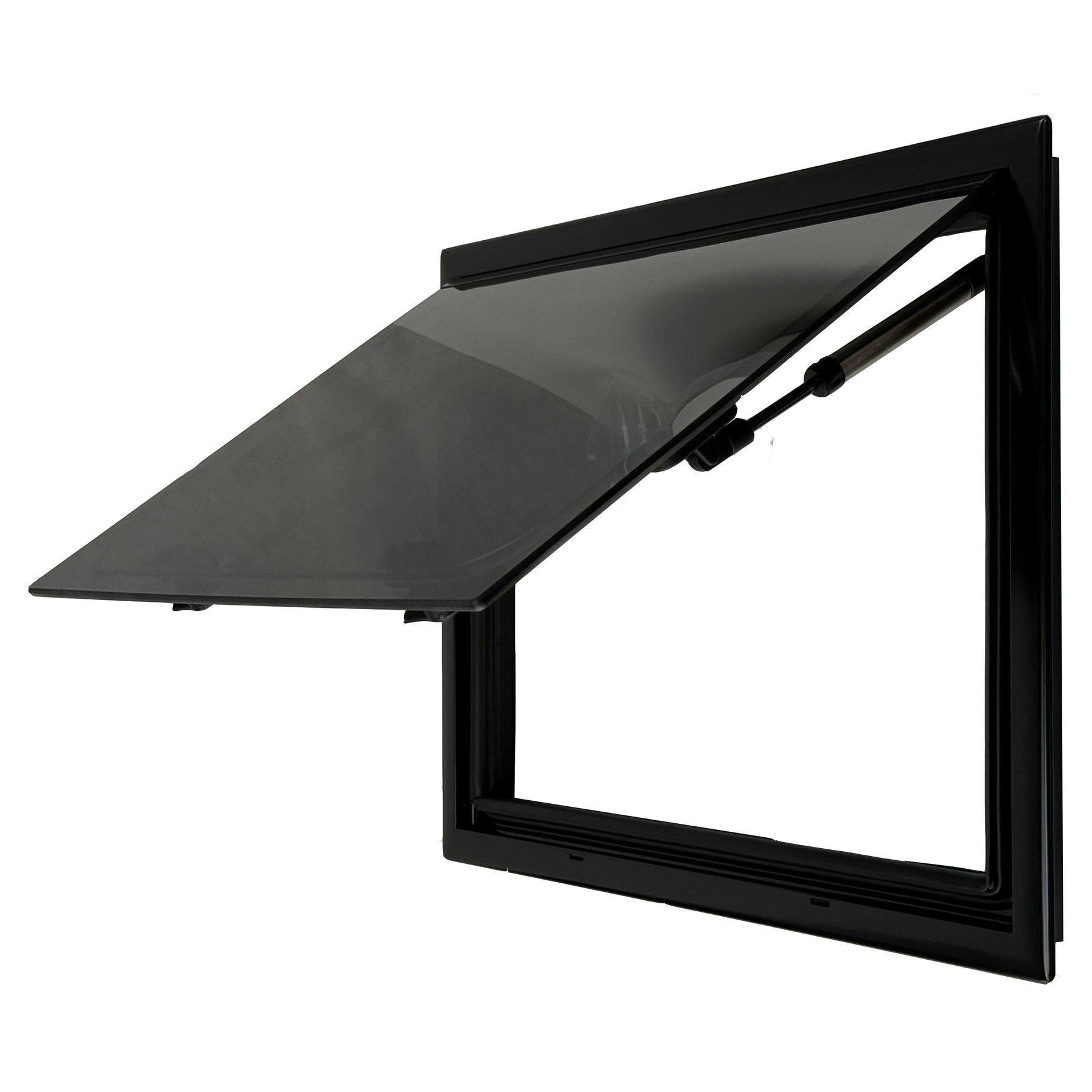

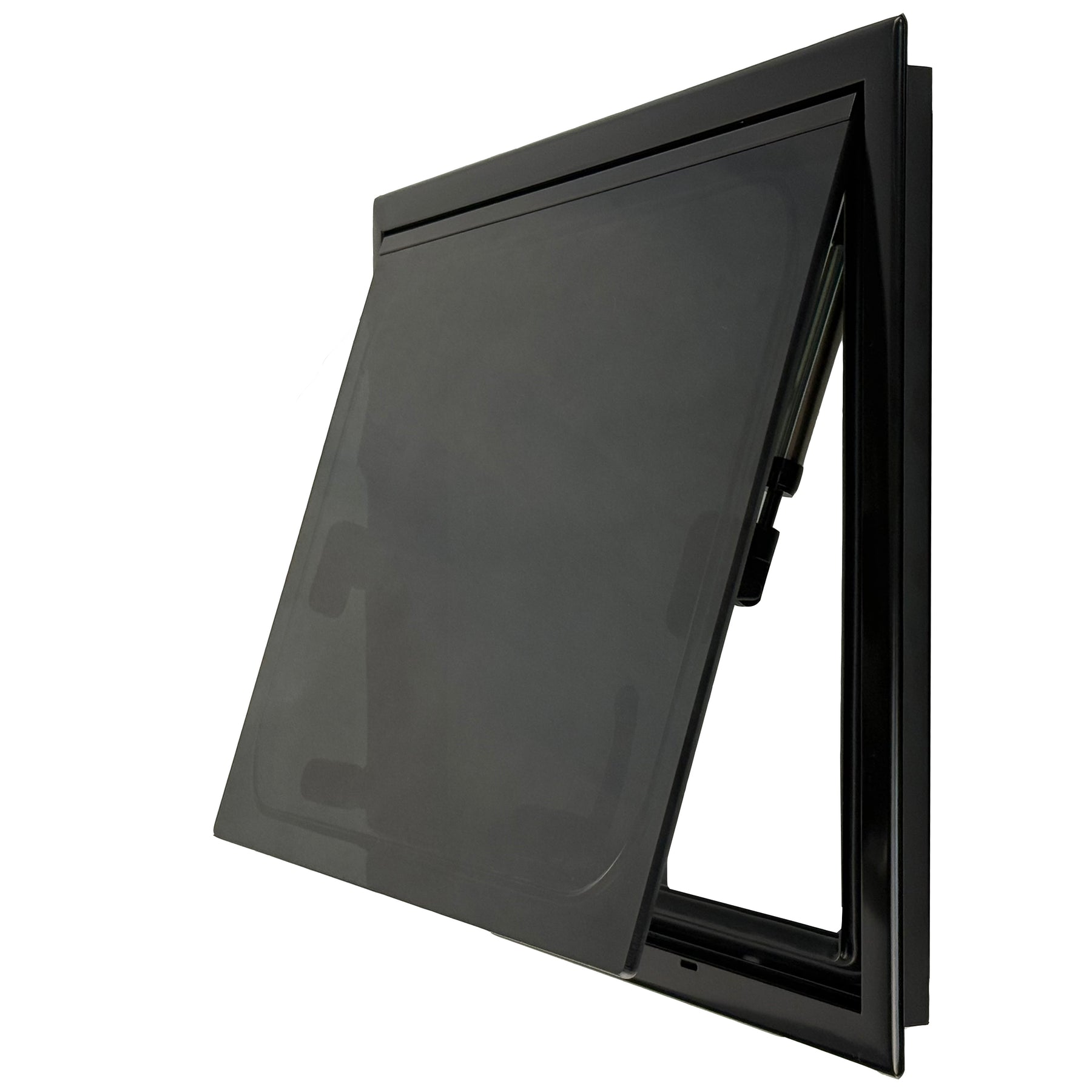

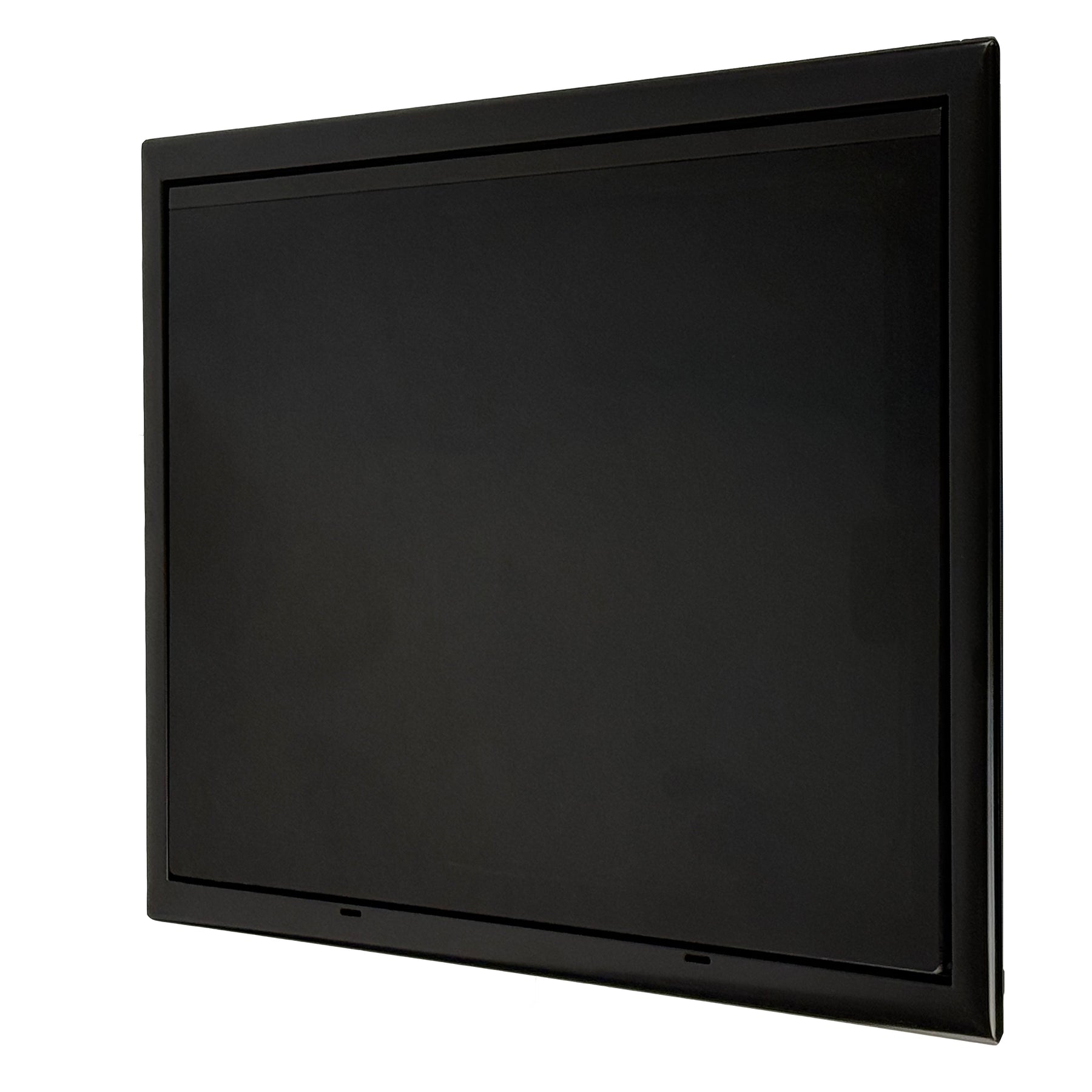

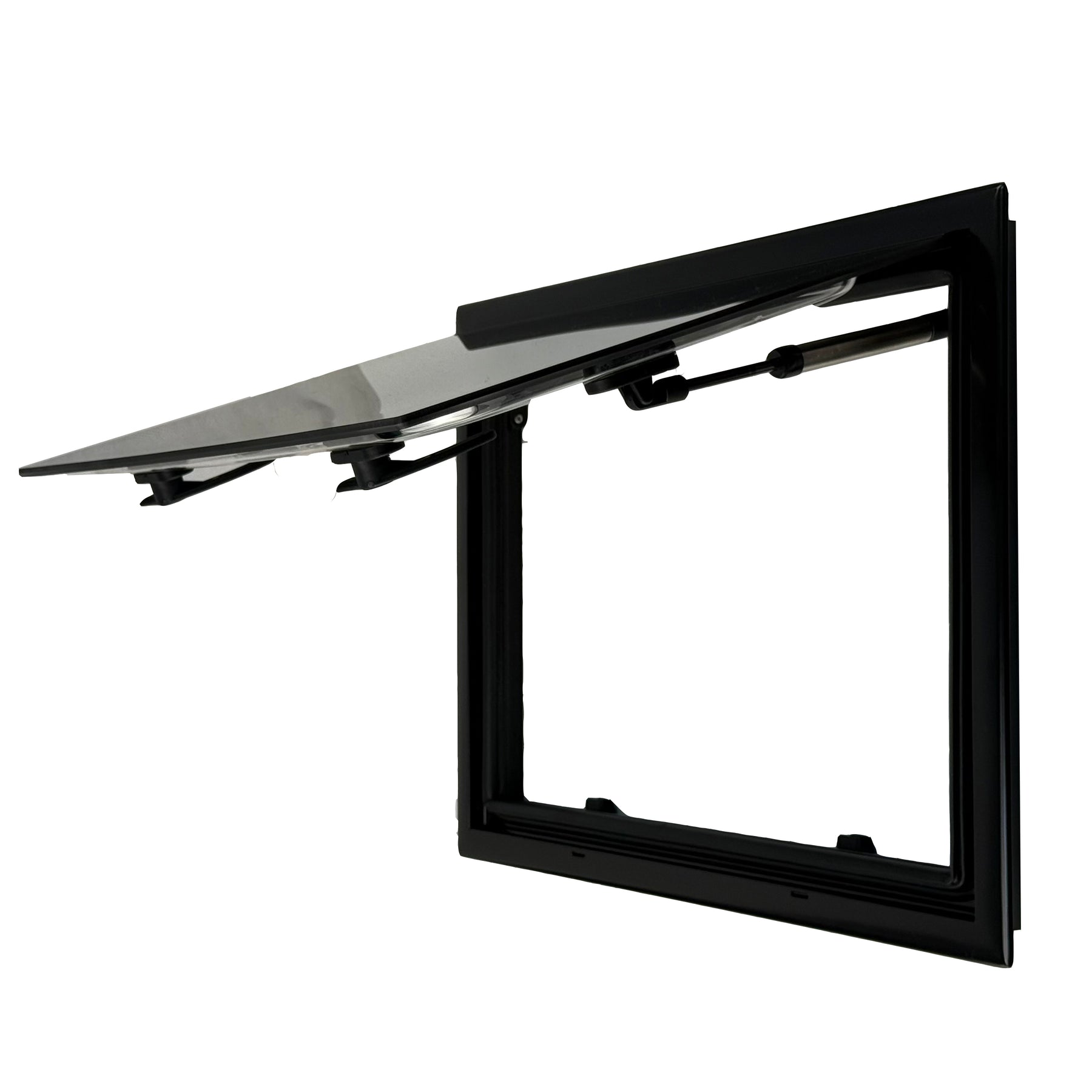

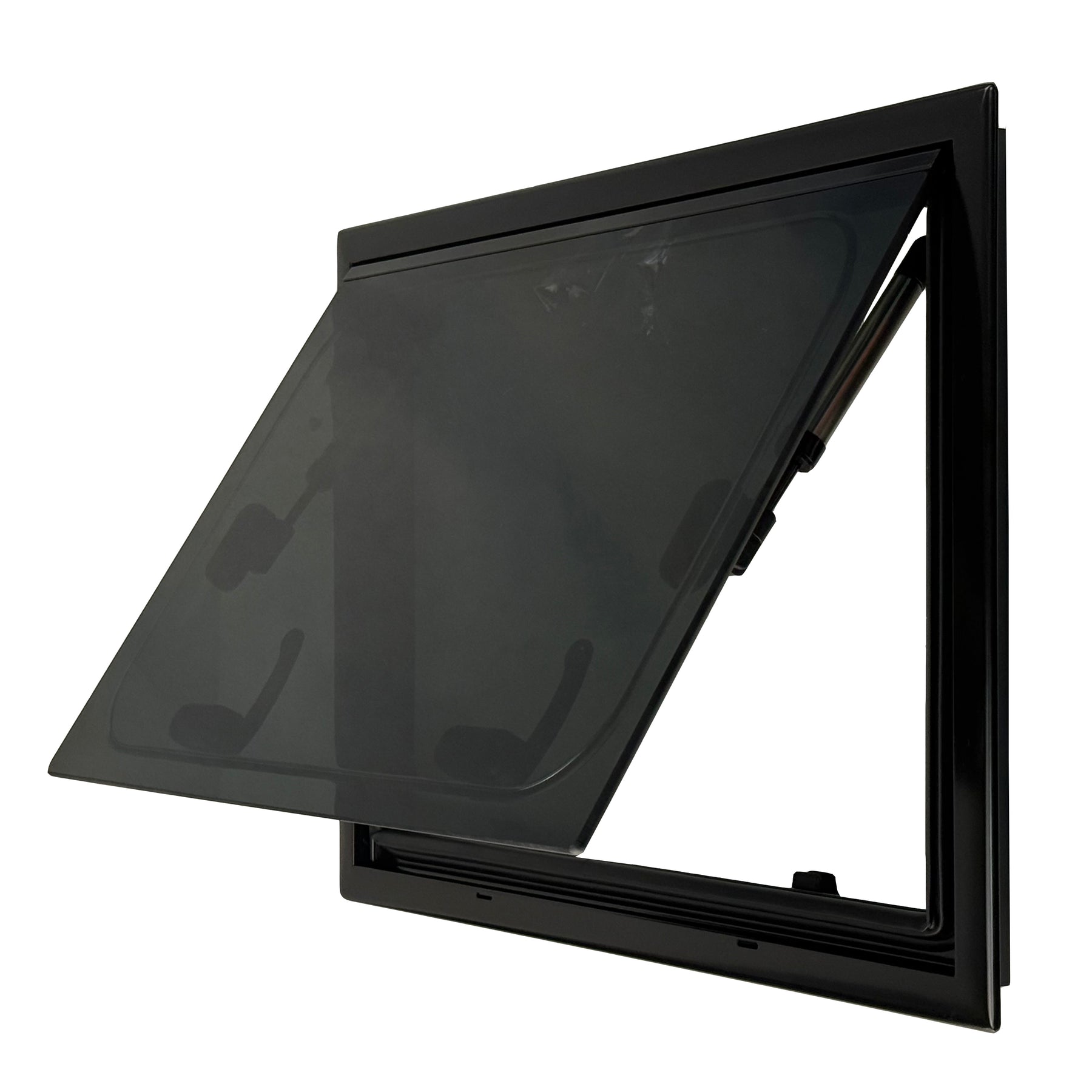

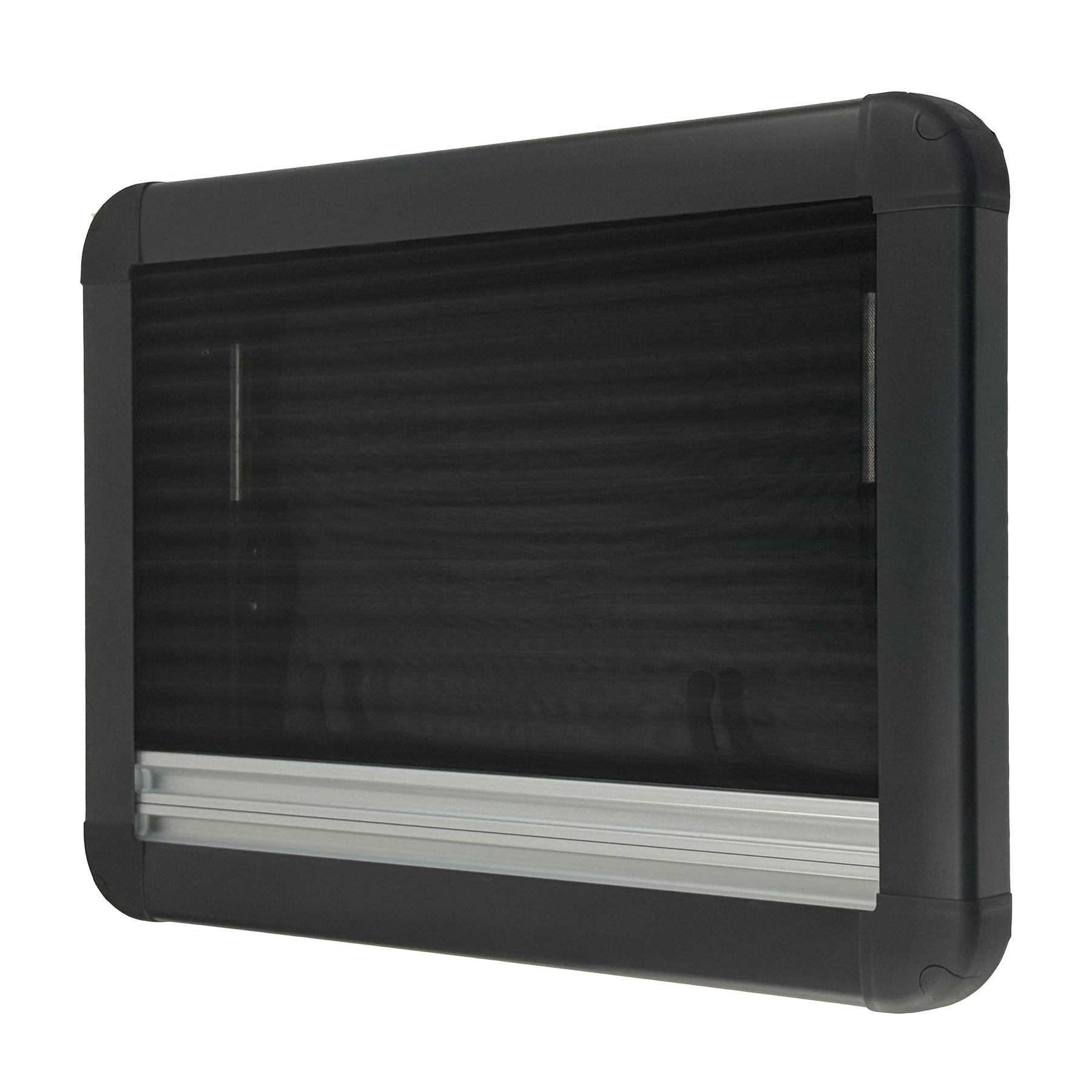

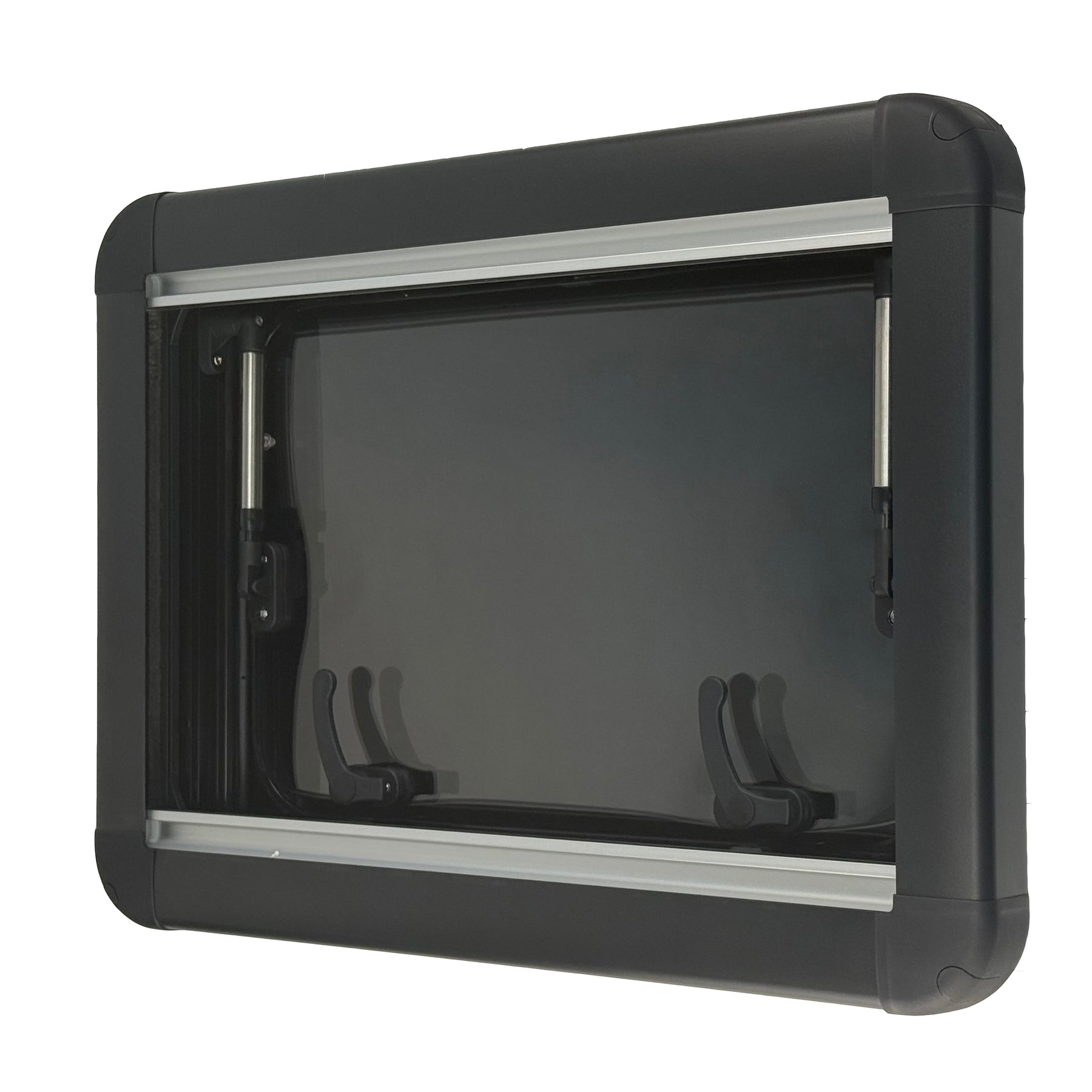

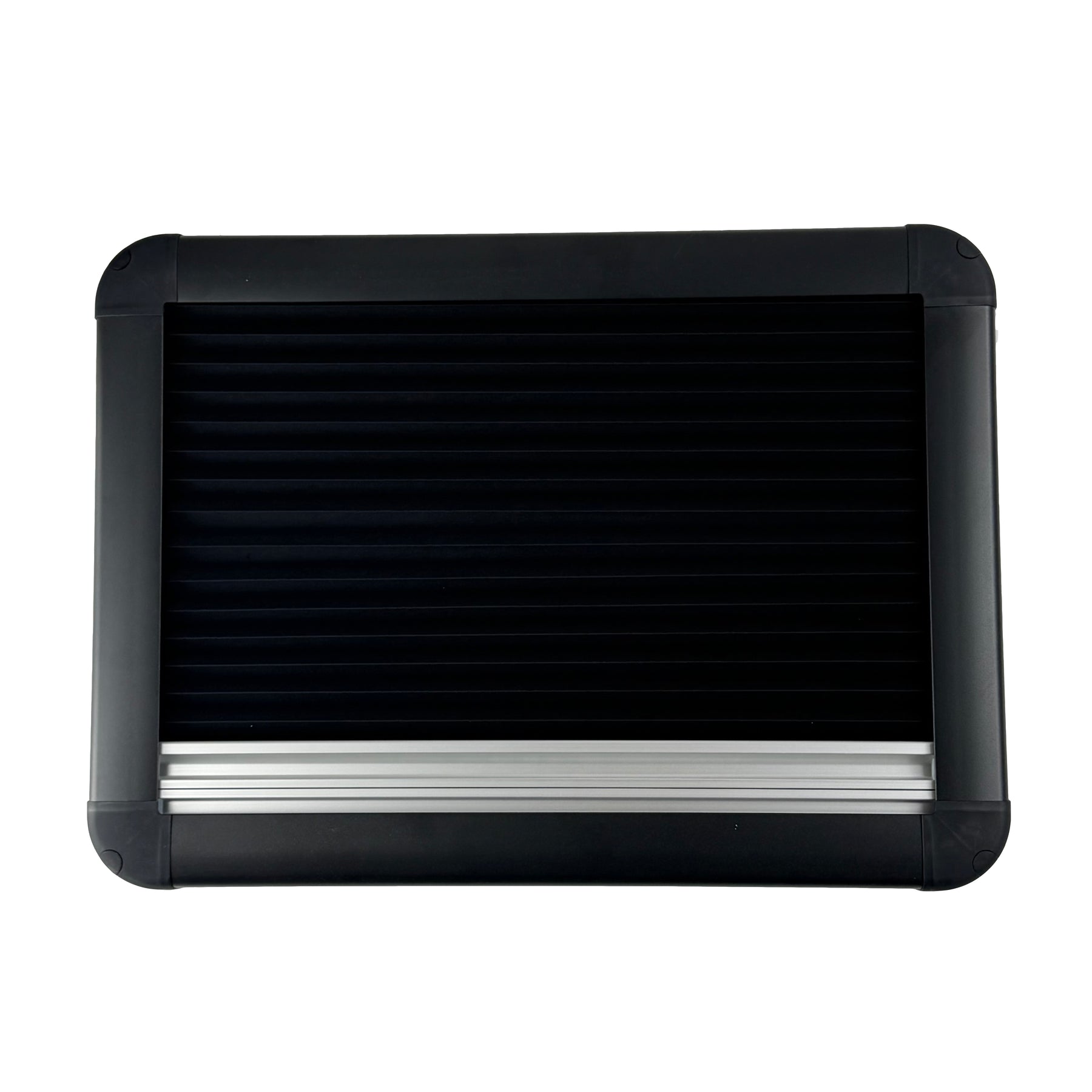

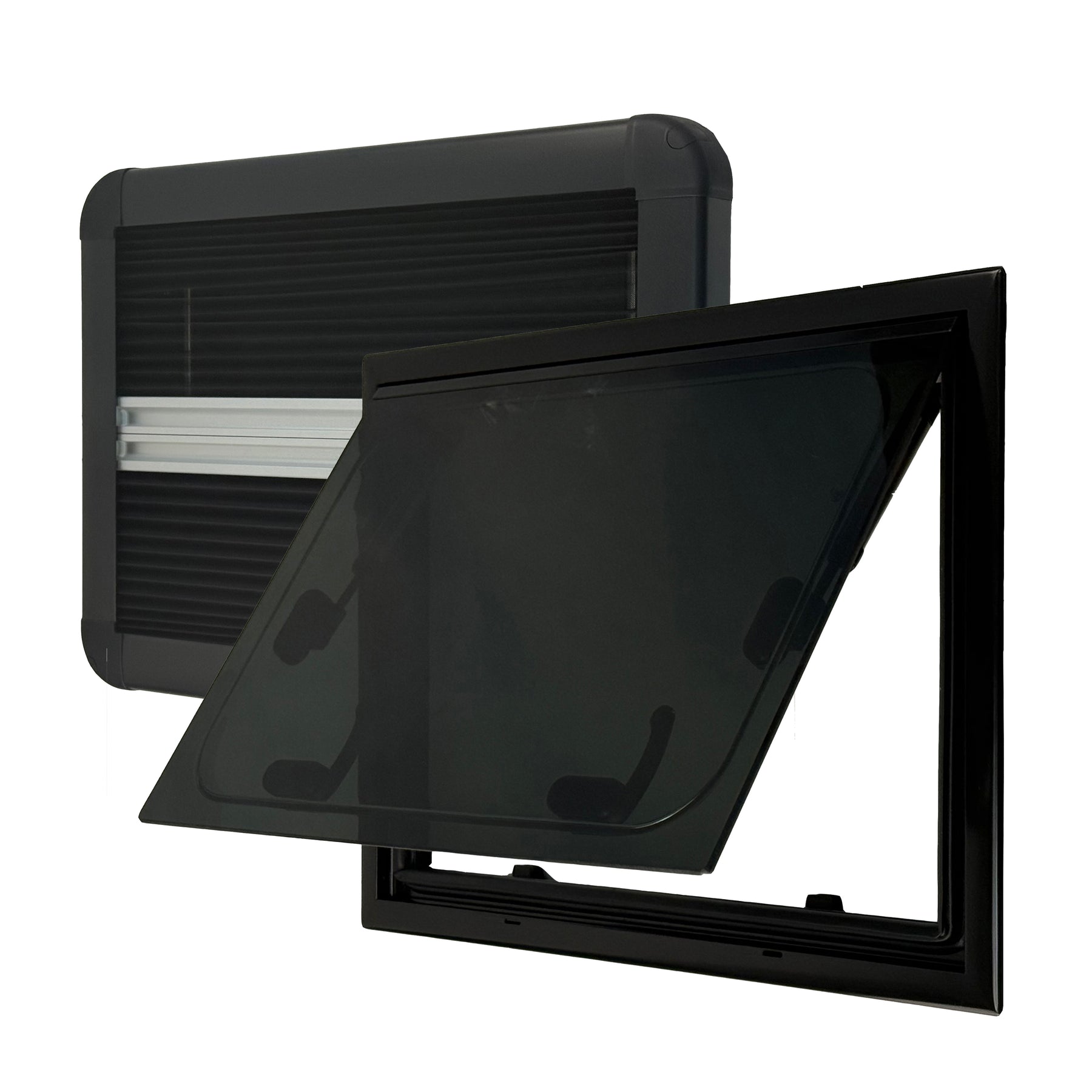

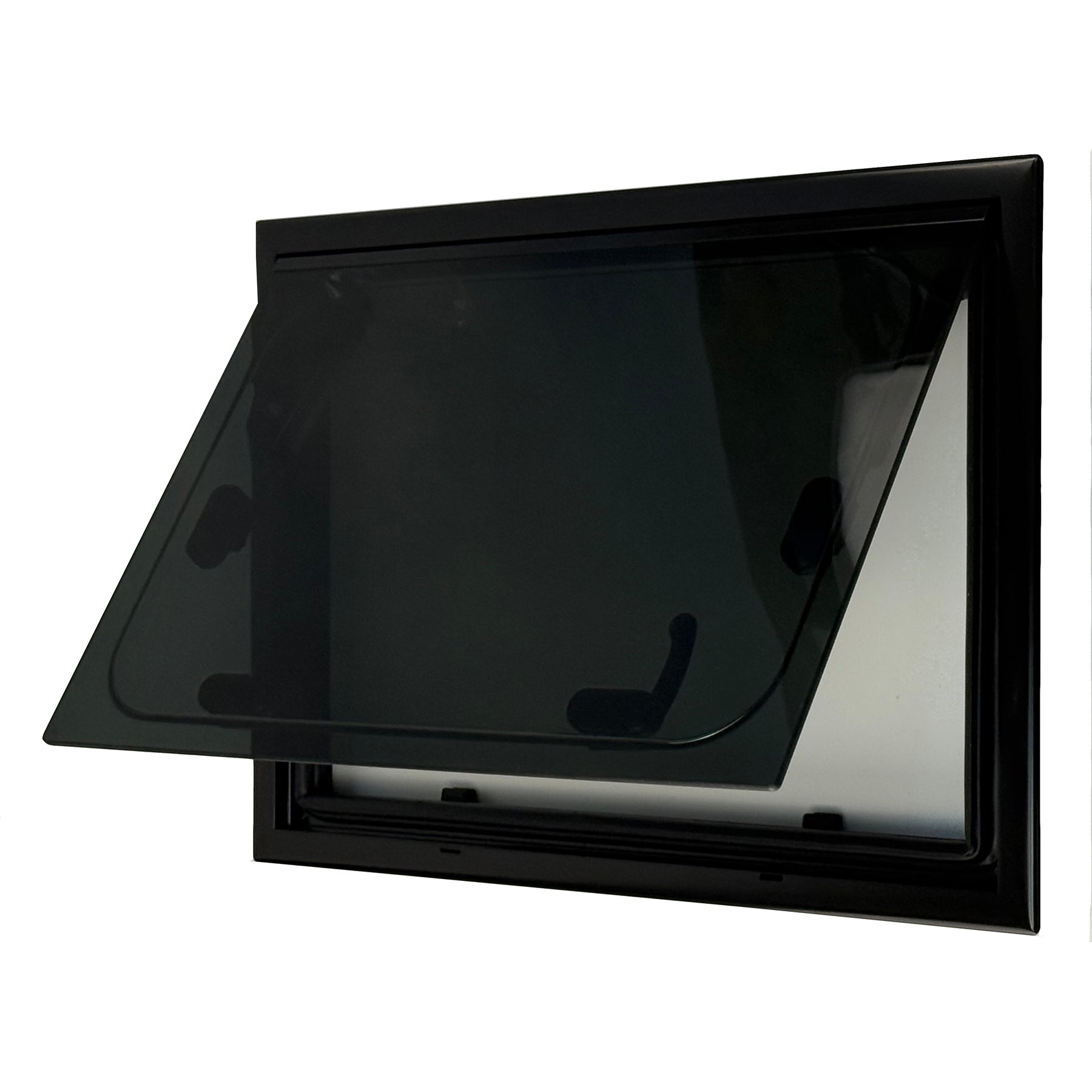

Precision-engineered cassette window assembly designed for professional vehicle conversion projects across caravans, motorhomes, camper vans, and horseboxes. The patented flush-mount configuration eliminates conventional convex geometry and external protrusion, optimising aerodynamic performance and aesthetic continuity. Complete integrated system combines tinted acrylic double-glazing with motorised blackout roller and flynet screening for comprehensive environmental control. Engineered for rapid deployment with compatibility across 22-35mm wall thicknesses via modular frame adjustment. Delivers seamless performance in both new-build conversions and retrofit applications requiring minimal structural intervention.
| Window Size Item:BB.FLT W*H |
Cut-out (mm) |
Overall Outer Dimension (mm) |
Inner Blind Frame Dimension (mm) |
Left handle Lock (pcs) |
Right Handle Lock (pcs) |
Bottom Handle Lock (pcs) |
| 280*380 |
280*380 |
309.4*409.4 |
299.8*399.8 |
1 |
1 |
0 |
| 300*400 |
300*400 |
329.4*429.4 |
319.8*419.8 |
1 |
1 |
0 |
| 300*500 |
300*500 |
329.4*529.4 |
319.8*519.8 |
1 |
1 |
0 |
| 350*500 |
350*500 |
379.4*529.4 |
369.8*519.8 |
1 |
1 |
0 |
| 450*400 |
450*400 |
479.4*429.4 |
469.8*419.8 |
1 |
1 |
1 |
| 450*500 |
450*500 |
479.4*529.4 |
469.8*519.8 |
1 |
1 |
1 |
| 500*300 |
500*300 |
529.4*329.4 |
519.8*319.8 |
0 |
0 |
2 |
| 500*350 |
500*350 |
529.4*379.4 |
519.8*369.8 |
0 |
0 |
2 |
| 500*400 |
500*400 |
529.4*429.4 |
519.8*419.8 |
1 |
1 |
1 |
| 500*450 |
500*450 |
529.4*479.4 |
519.8*469.8 |
1 |
1 |
1 |
| 500*500 |
500*500 |
529.4*529.4 |
519.8*519.8 |
1 |
1 |
1 |
| 500*520 |
500*520 |
529.4*549.4 |
519.8*539.8 |
1 |
1 |
1 |
| 550*600 |
550*600 |
579.4*629.4 |
569.8*619.8 |
1 |
1 |
2 |
| 610*450 |
610*450 |
639.4*479.4 |
629.8*469.8 |
1 |
1 |
1 |
| 700*300 |
700*300 |
729.4*329.4 |
719.8*319.8 |
0 |
0 |
2 |
| 700*350 |
700*350 |
729.4*379.4 |
719.8*369.8 |
0 |
0 |
2 |
| 700*400 |
700*400 |
729.4*429.4 |
719.8*419.8 |
1 |
1 |
1 |
| 700*450 |
700*450 |
729.4*479.4 |
719.8*469.8 |
1 |
1 |
1 |
| 700*500 |
700*500 |
729.4*529.4 |
719.8*519.8 |
1 |
1 |
2 |
| 700*520 |
700*520 |
729.4*549.4 |
719.8*539.8 |
1 |
1 |
2 |
| 700*550 |
700*550 |
729.4*579.4 |
719.8*569.8 |
1 |
1 |
2 |
| 700*800 |
700*800 |
729.4*829.4 |
719.8*819.8 |
1 |
1 |
2 |
| 800*400 |
800*400 |
829.4*429.4 |
819.8*419.8 |
1 |
1 |
2 |
| 800*450 |
800*450 |
829.4*479.4 |
819.8*469.8 |
1 |
1 |
2 |
| 800*1000 |
800*1000 |
829.4*1029.4 |
819.8*1019.8 |
1 |
1 |
2 |
| 900*300 |
900*300 |
929.4*329.4 |
919.8*319.8 |
0 |
0 |
3 |
| 900*350 |
900*350 |
929.4*379.4 |
919.8*369.8 |
0 |
0 |
3 |
| 900*450 |
900*450 |
929.4*479.4 |
919.8*469.8 |
1 |
1 |
2 |
| 900*500 |
900*500 |
929.4*529.4 |
919.8*519.8 |
1 |
1 |
2 |
| 900*520 |
900*520 |
929.4*549.4 |
919.8*539.8 |
1 |
1 |
2 |
| 900*550 |
900*550 |
929.4*579.4 |
919.8*569.8 |
1 |
1 |
2 |
| 900*900 |
900*900 |
929.4*929.4 |
919.8*919.8 |
1 |
1 |
2 |
| 1000*500 |
1000*500 |
1029.4*529.4 |
1019.8*519.8 |
1 |
1 |
3 |
| 1000*800 |
1000*800 |
1029.4*829.4 |
1019.8*819.8 |
1 |
1 |
3 |
| 1100*300 |
1100*300 |
1129.4*329.4 |
1119.8*319.8 |
0 |
0 |
3 |
| 1100*450 |
1100*450 |
1129.4*479.4 |
1119.8*469.8 |
1 |
1 |
3 |
| 1100*550 |
1100*550 |
1129.4*579.4 |
1119.8*569.8 |
1 |
1 |
3 |
| 1200*300 |
1200*300 |
1229.4*329.4 |
1219.8*319.8 |
0 |
0 |
3 |
| 1200*350 |
1200*350 |
1229.4*379.4 |
1219.8*369.8 |
0 |
0 |
3 |
| 1200*500 |
1200*500 |
1229.4*529.4 |
1219.8*519.8 |
1 |
1 |
3 |
| 1450*500 |
1450*500 |
1479.4*529.4 |
1469.8*519.8 |
1 |
1 |
4 |
| 1450*550 |
1450*550 |
1479.4*579.4 |
1469.8*569.8 |
1 |
1 |
4
|
